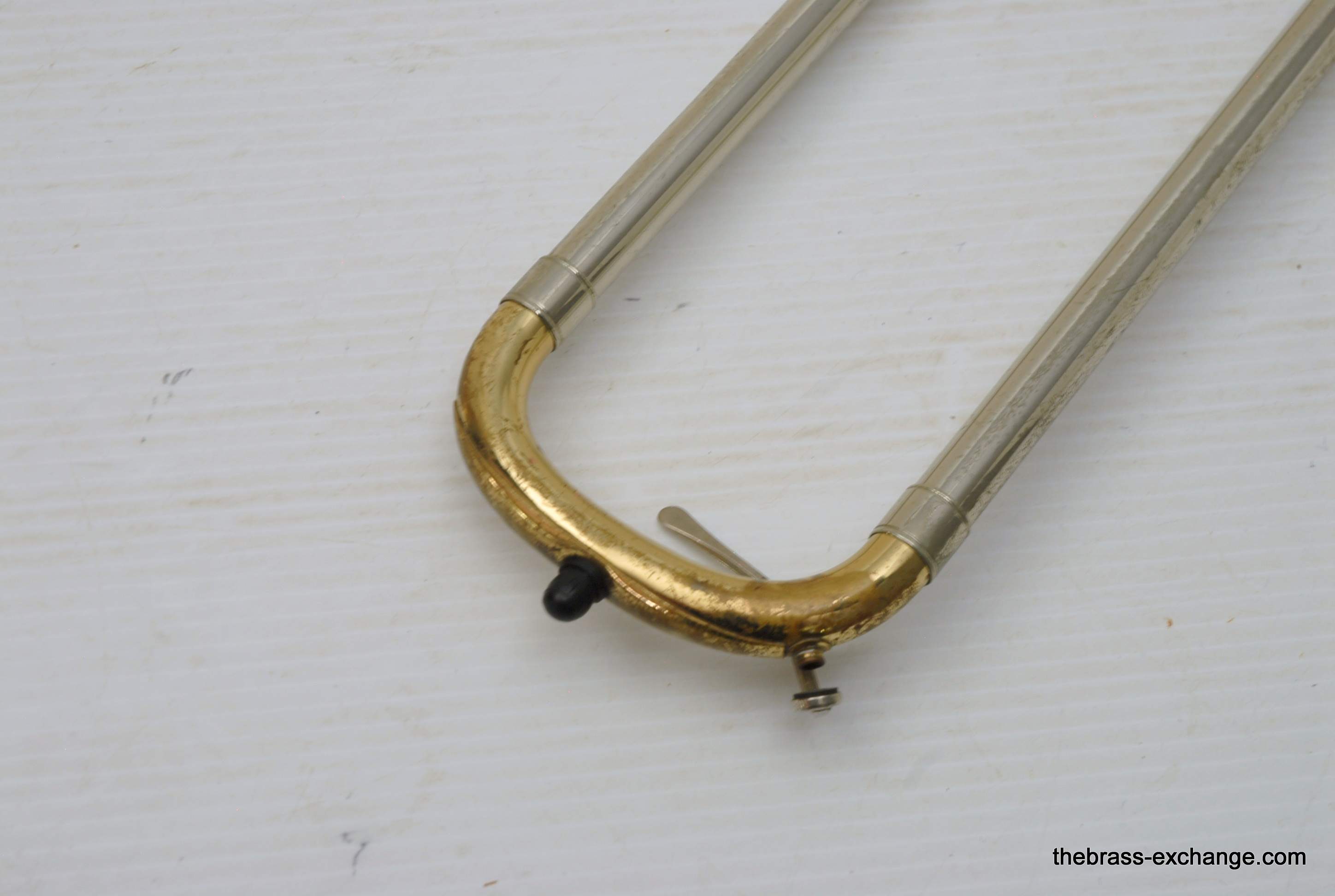

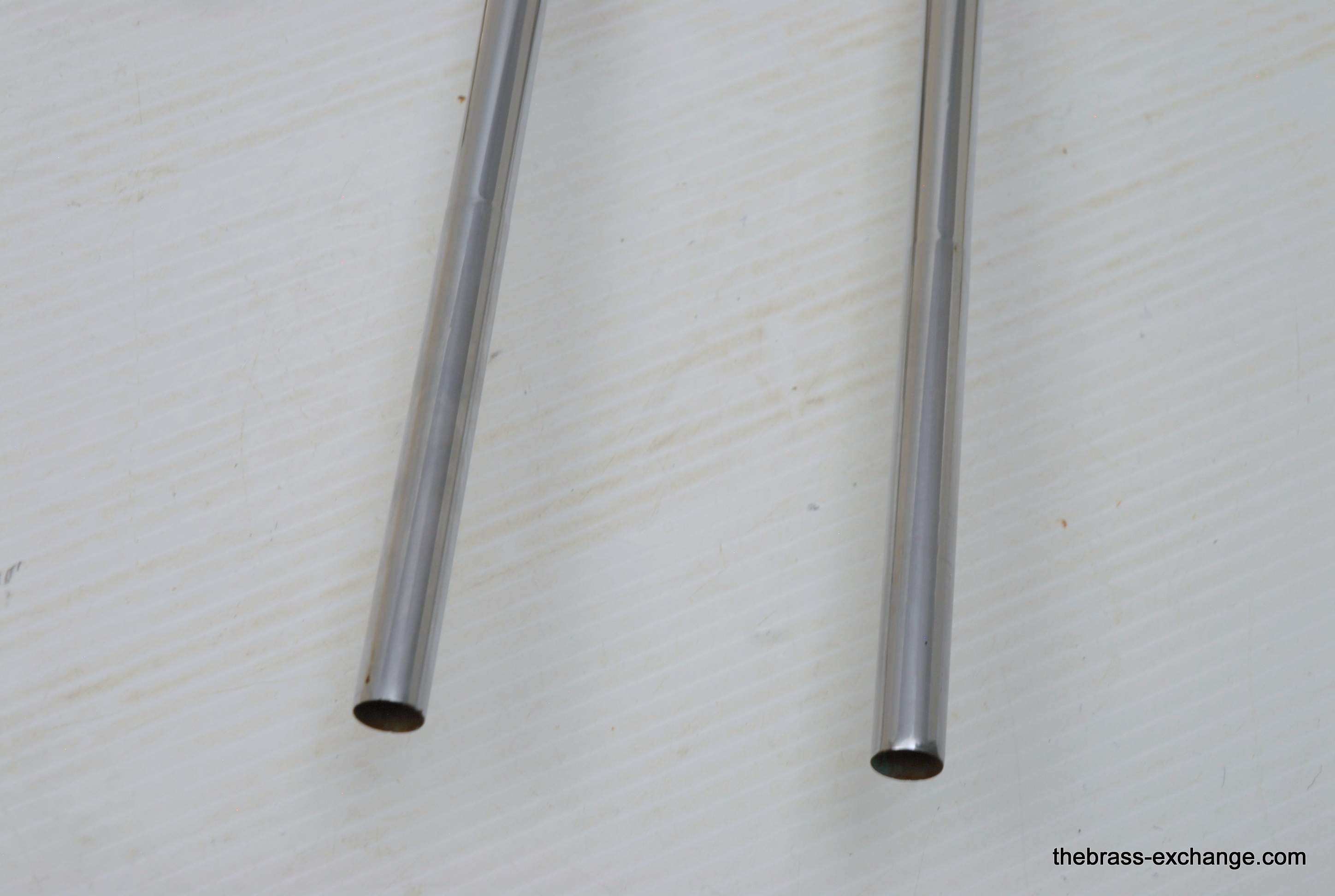

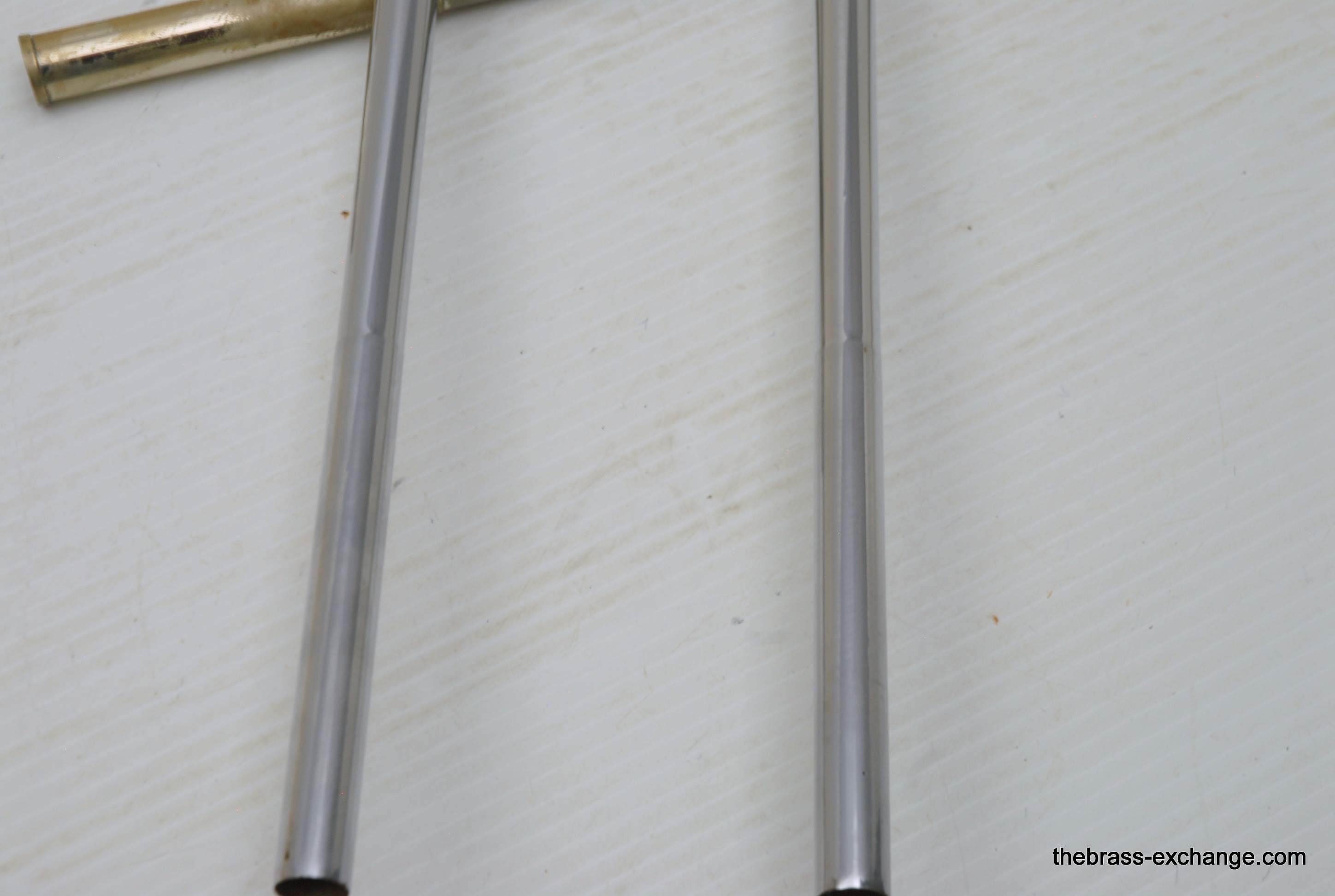

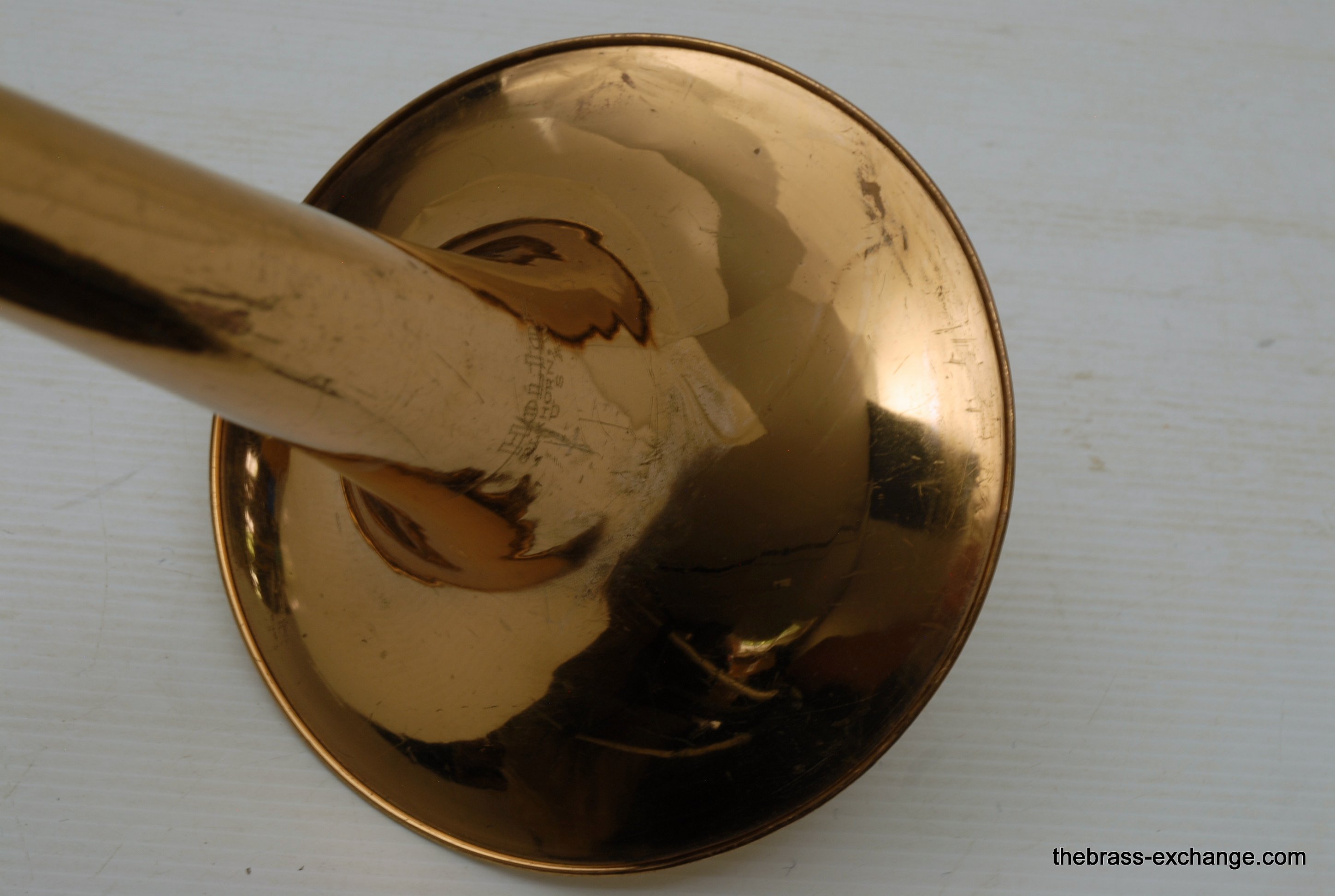

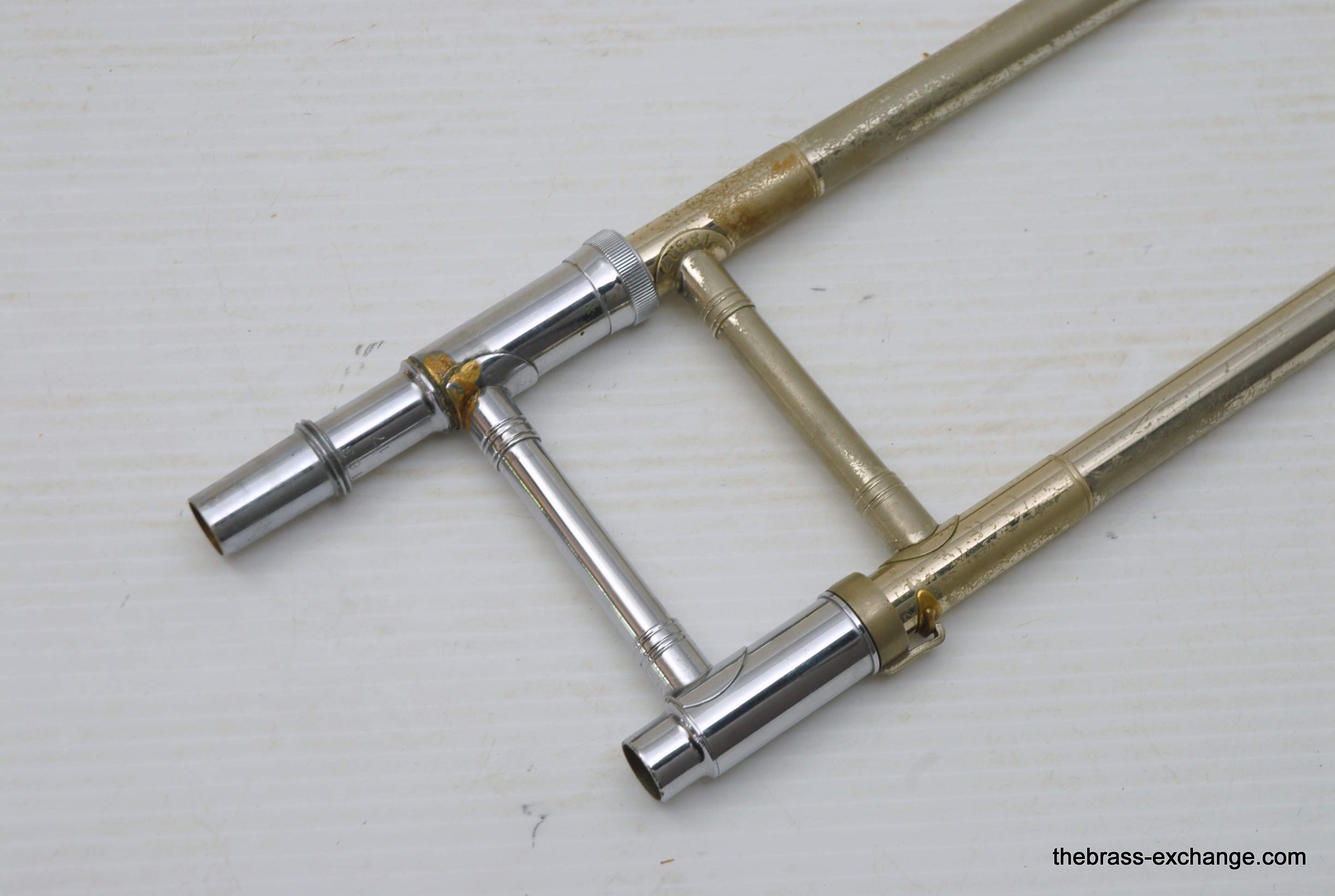

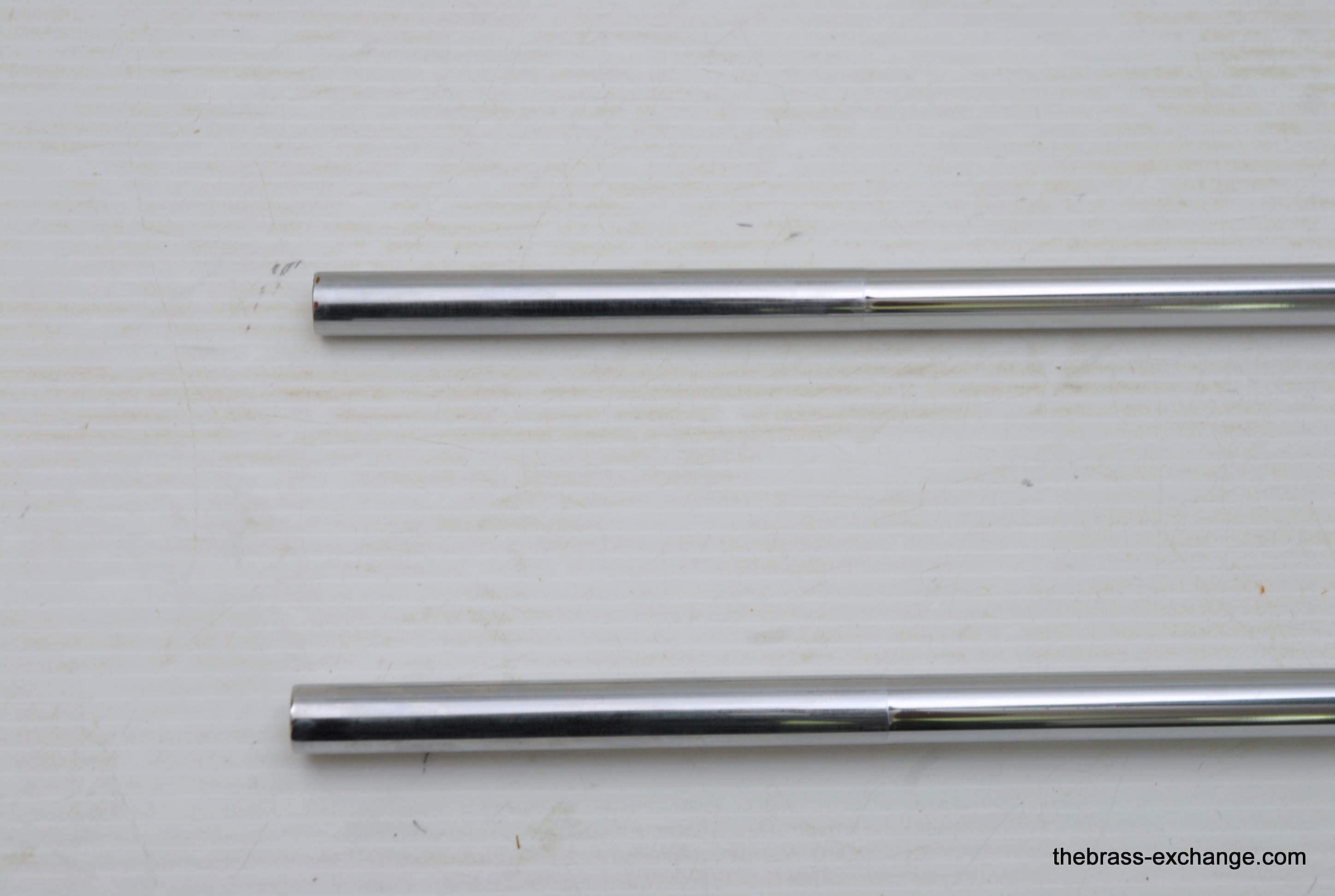

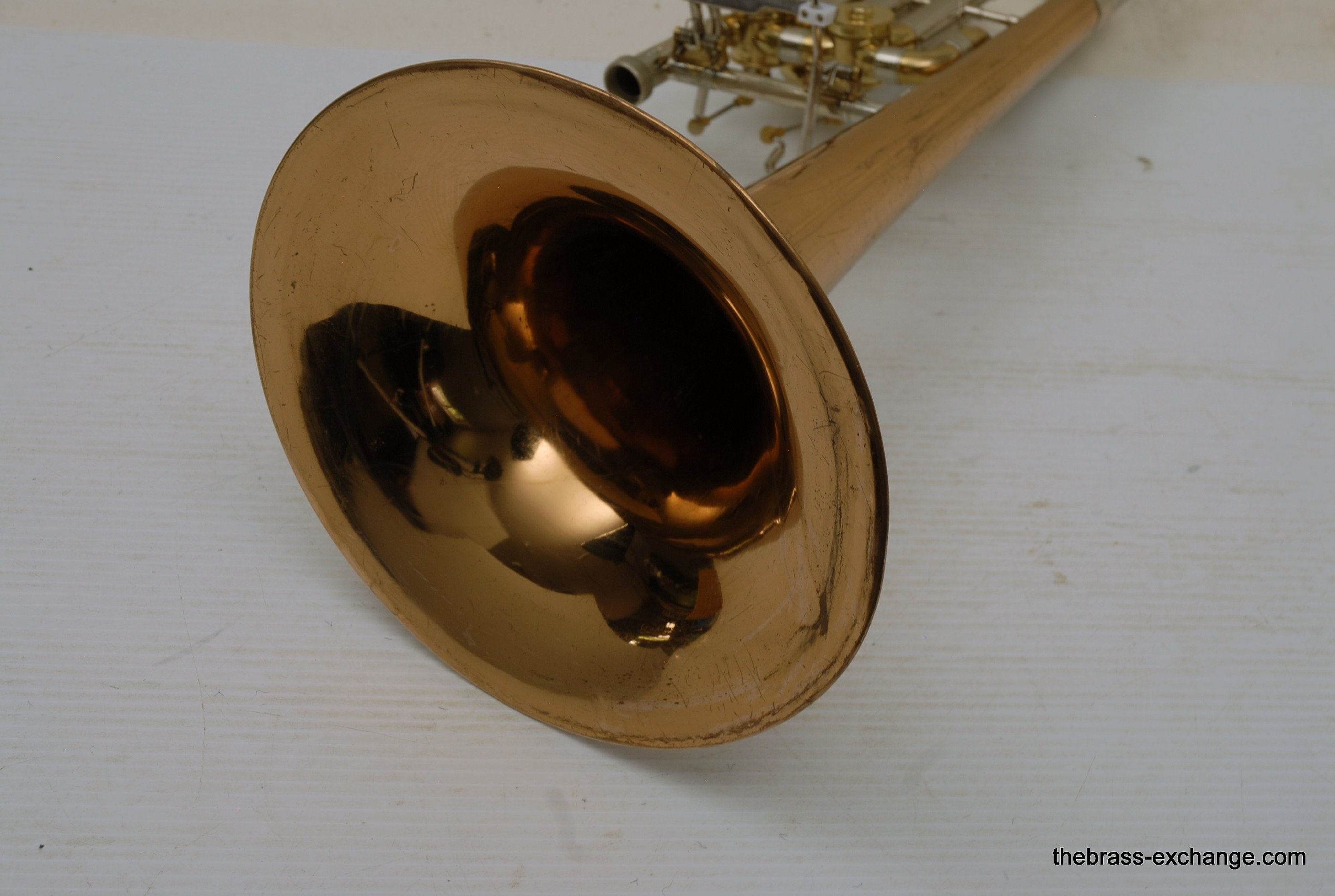

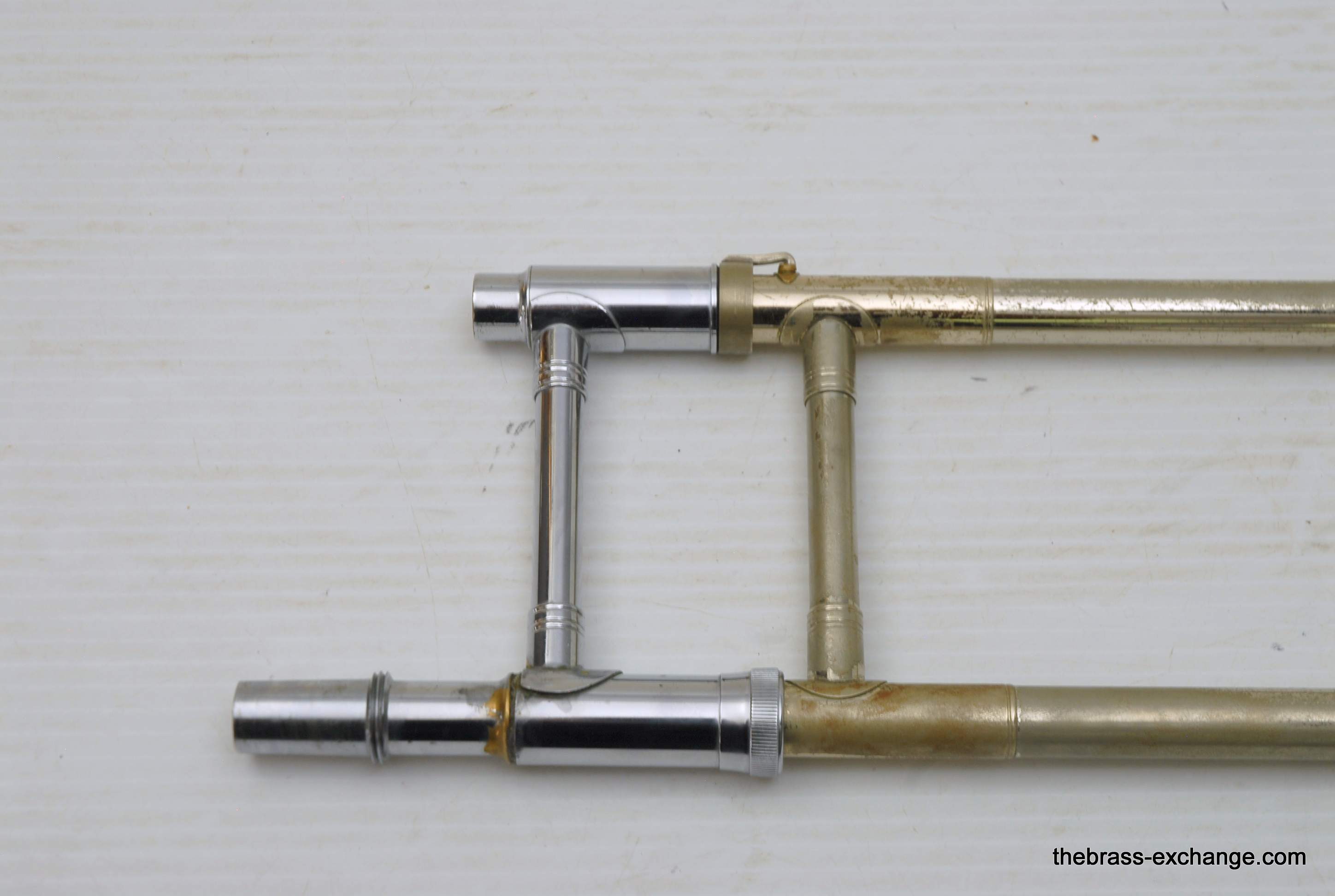

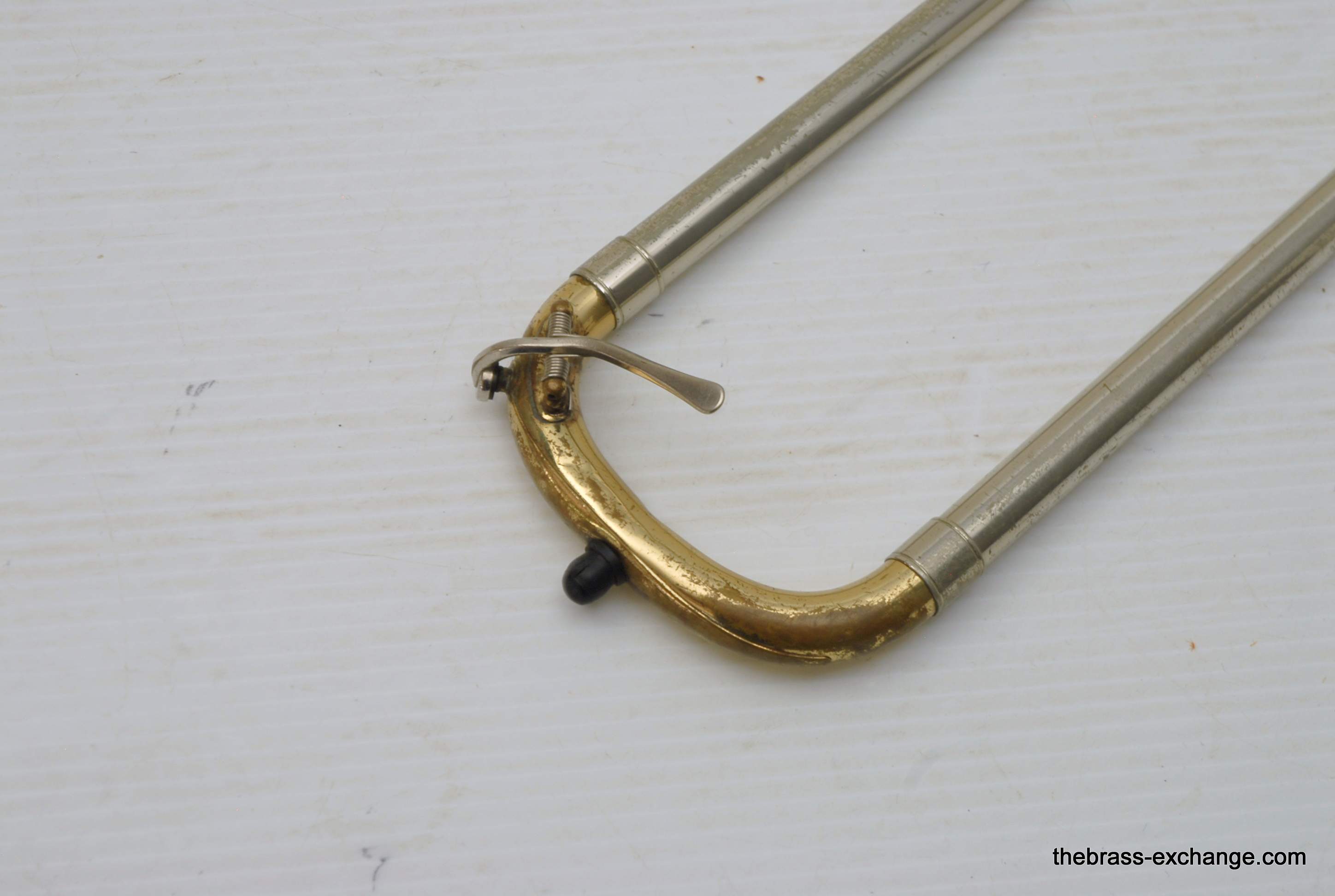

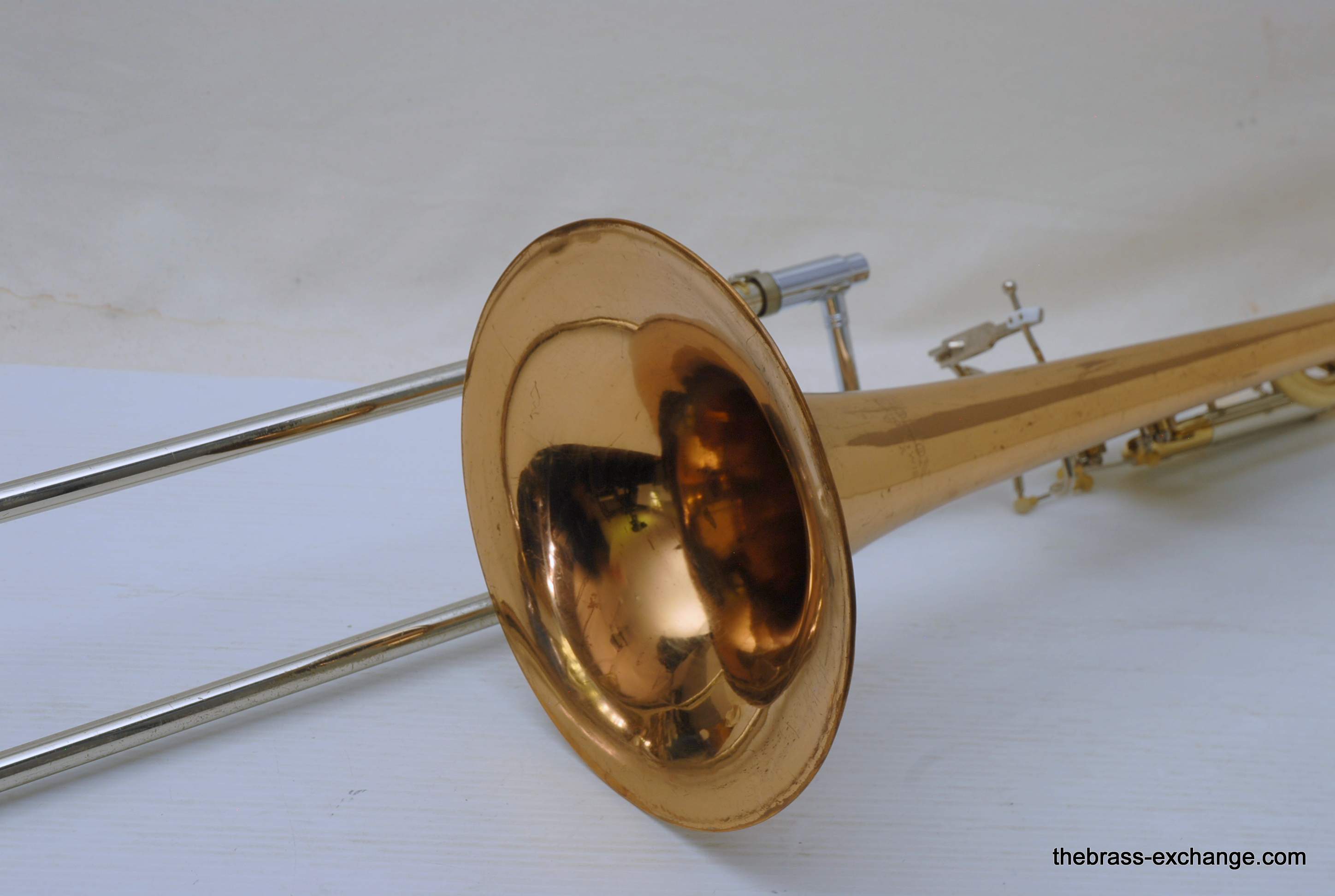

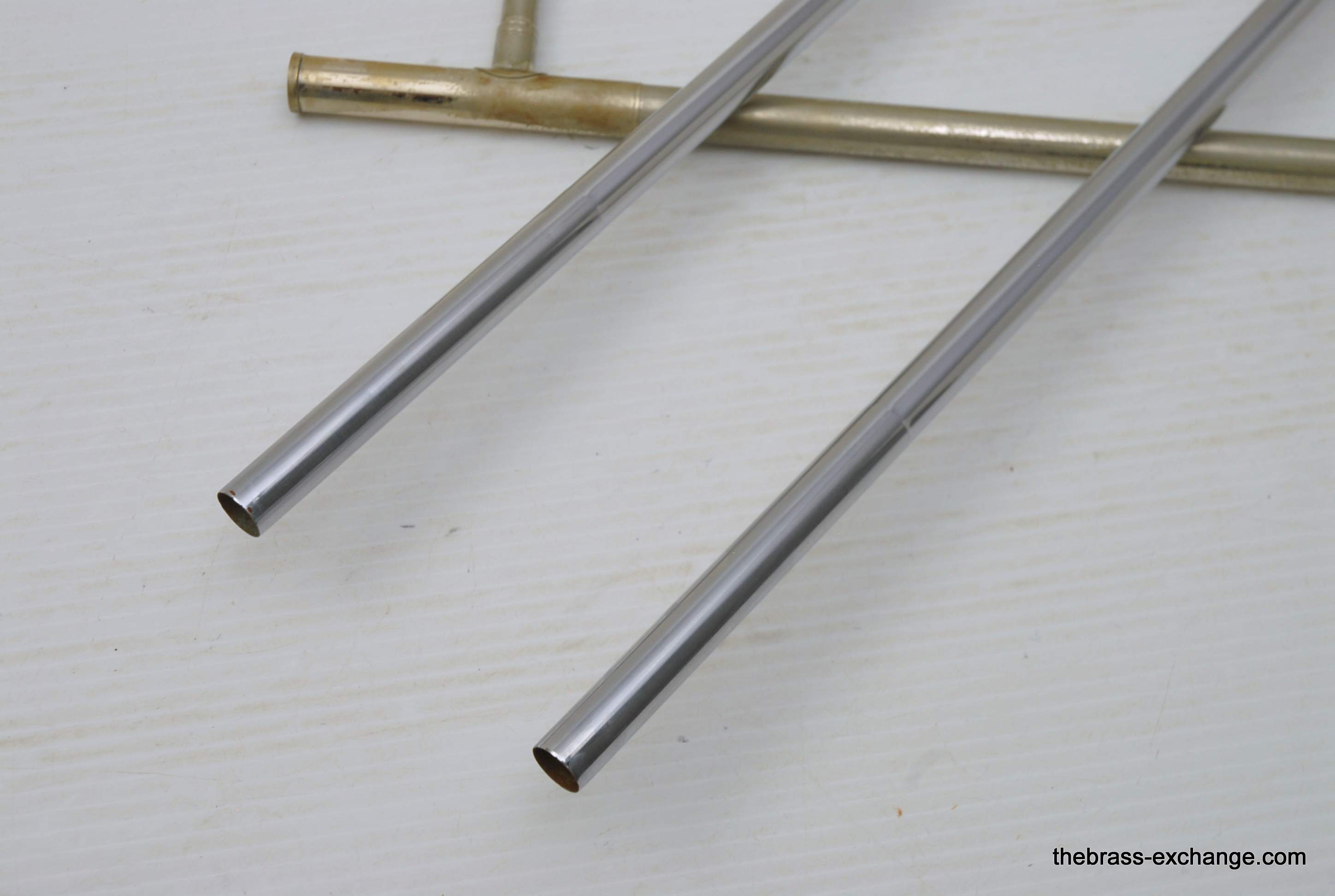

This Holton TR180 Bass Trombone dates to the early 1970s and represents one of the most intuitive dependent rotor designs of the era. It was famously favored by Professor Lewis Van Haney of Indiana University, a major figure in American trombone pedagogy. The TR180 features a 10" rose brass bell and a lightweight nickel silver handslide, offering a vibrant tone with fast slide response.

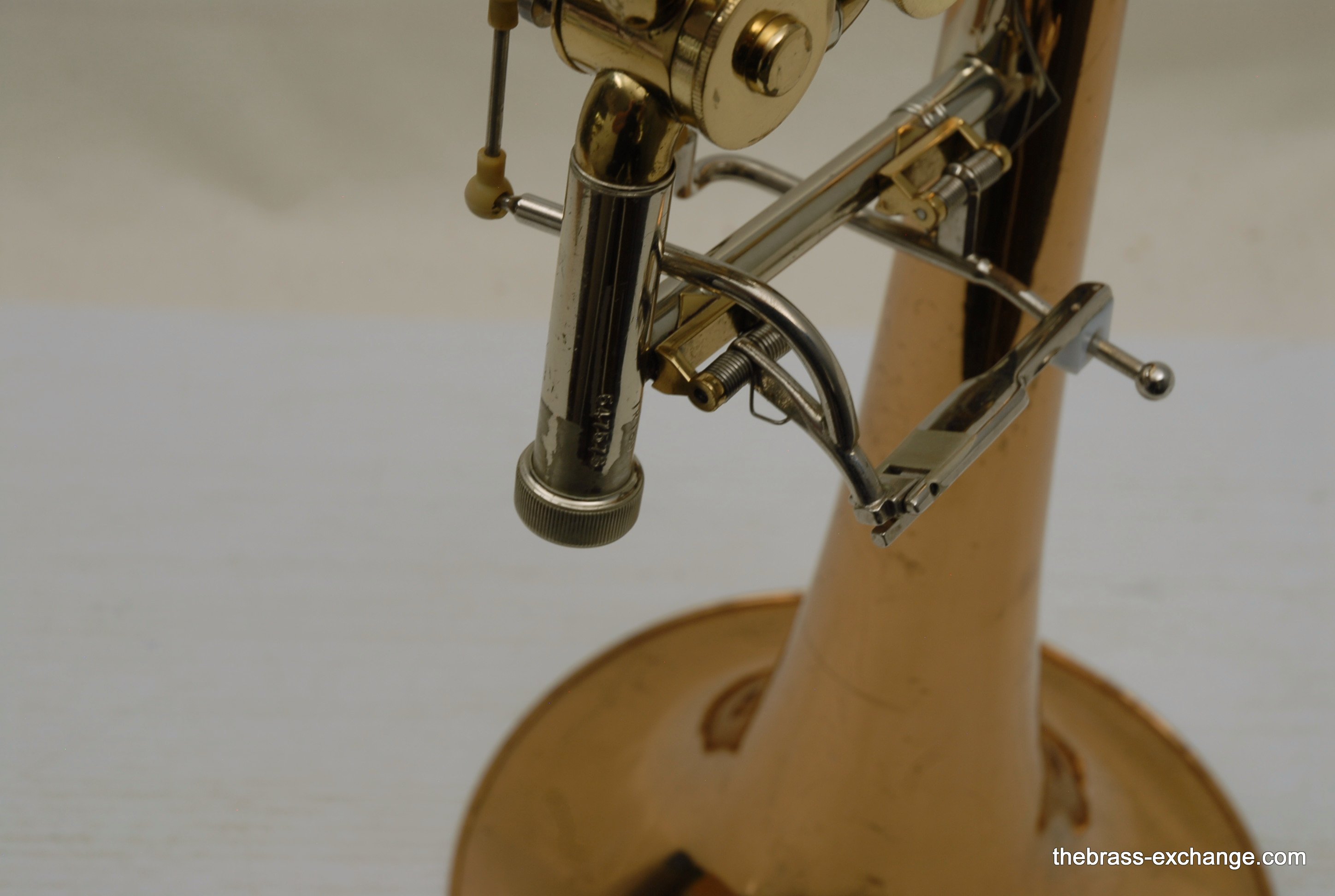

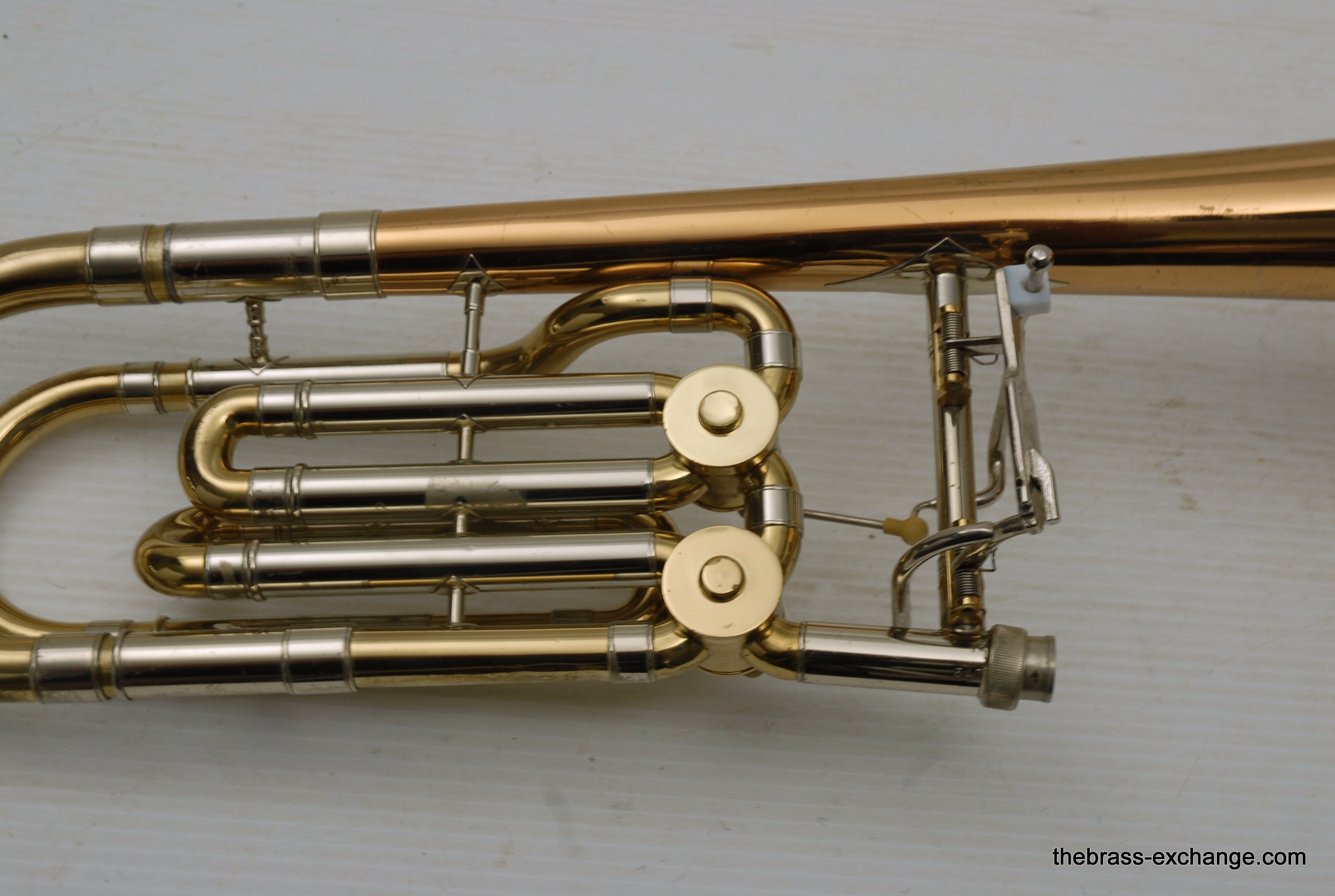

Its valve configuration is Bb/F/E♭ (flat E) tuning using a dependent rotor system. That means the second valve only functions when the first valve is engaged. When using the first valve alone, the instrument plays in F—just like an F-attachment on a tenor. When both valves are pressed, the second valve adds a semitone, lowering the pitch to a very flat E (closer to E♭ but not quite). This allows the player to achieve a low B in seventh position using both valves, mirroring the B one octave above it played on a tenor in seventh position without a valve. A low C is also accessible in an elevated sixth position with both valves.
This system is particularly intuitive for tenor trombone doublers who want to add bass without overcomplicating the valve mechanics. The sound is broad and orchestral, but easy to control, making it a great option for classical players or jazz musicians crossing over into bass.

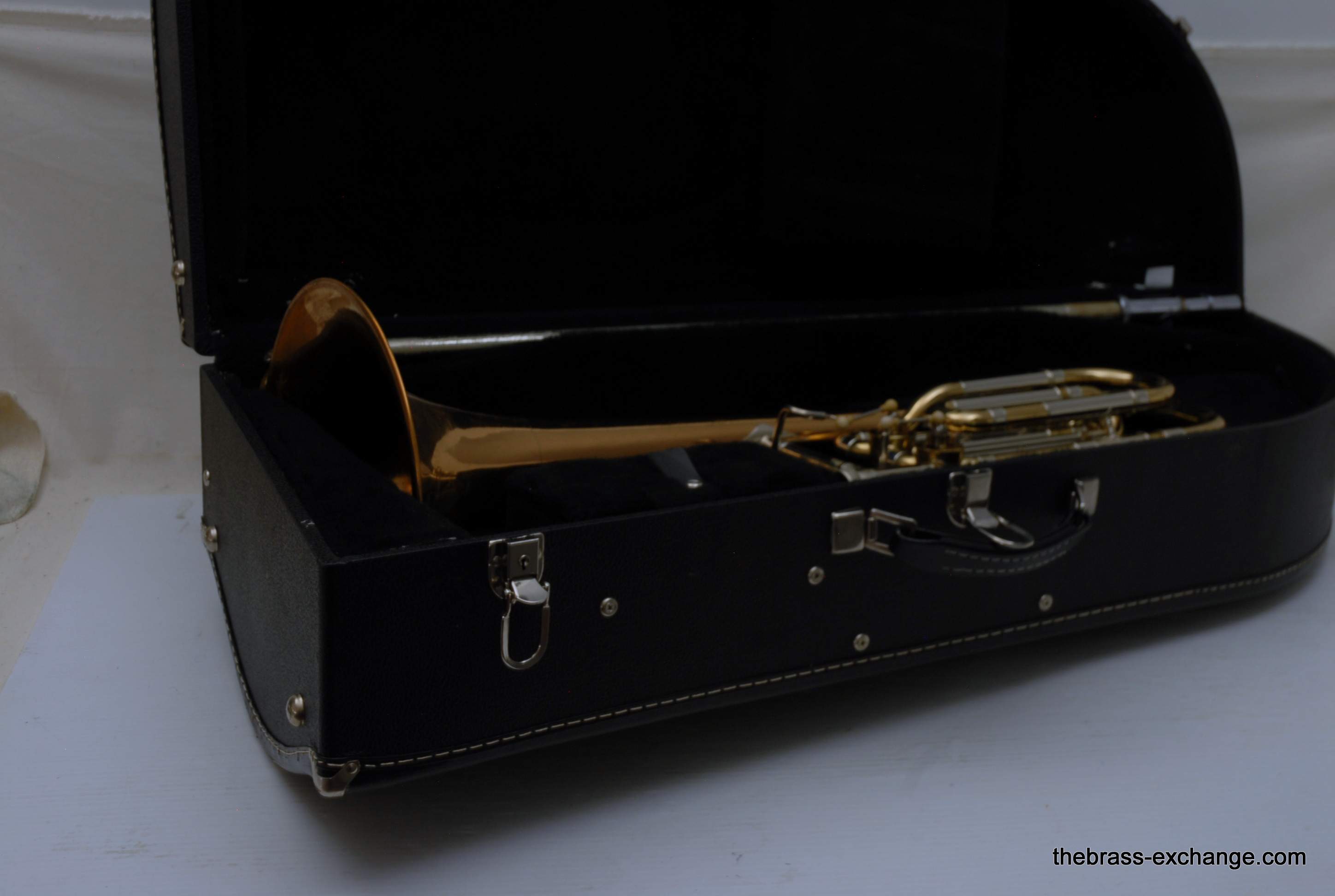

The bell section has received full shop service including dent removal, chemical cleaning, and rotor alignment. The instrument still retains its original lacquer and comes with a like-new Getzen bass trombone case.
Why do some bass trombonists prefer dependent rotors like the Holton TR180?
Dependent rotor systems tend to be lighter and offer a more focused sound with slightly less resistance. Players who are used to F-attachment tenor trombones often find dependent bass models easier to adapt to. The TR180’s layout provides access to low register notes without the complexity of fully independent valve combinations, making it a favorite for tenor doublers and classical performers alike.
This Holton TR180 has been sold and is now archived here as a reference for musicians and collectors of vintage low brass.
